Network Electronic Cable Sftp Cat 6 23 Awg 0.58mm Solid Copper 1000ft / Roll

SHENZHEN XINTAIYUE COMMUNICATION CABLE CO.,LTD.
Contact Now

Network Electronic Cable Sftp Cat 6 23 Awg 0.58mm Solid Copper 1000ft / Roll

  • 1
  • 2

Brand Name : WONTERM

Model Number : WT6803-or-SF

Certification : CE/FCC/UL/ROHS

Place of Origin : China

MOQ : 30pcs

Price : negotiation

Payment Terms : T/T, Western Union

Supply Ability : 2500pcs per month

Delivery Time : 10 working days after received your payment

Packaging Details : 305m/roll,500m/roll

Color : orange +black

Wire Core Material : Bare Copper Wire

Carton CBM(mm) : 45*37*37

Packing : Roll

Contact Now

Network Electronic Cable Sftp Cat 6 23 Awg 0.58mm Solid Copper 1000ft / Roll

Product Description

Model Cat6 Cable
Conductor Size Solid: 23AWG or Customizable.
Conductor Material Bare Copper or Customizable
Nuber Of Conductor 4 pair (8 core )
Flammability Grade: CMX,CM,CMR
Insulation Material HDPE
Insulation Thickness 0.55mm
Jacket Material ROHS PVC, LSZH or Customizable
Jacket Thickness 1.02mm
DC Resistance(Max.) 9.5Ω/100m
DC Resistance Imbalance 2.50%
Working Capacitance(Max.) 5.4nF/100m
Insulation Resistance 10000MΩ.km
Transmission Velocity 65%
Operating Temperation -20 °C - +75 °C
Jacket Color Orange+black

Product Specification:

Cat 6 550 mhz stp 1000 feet gray
Shielded Twisted Pair (STP) Cable - 550 MHz
23 awg wires made of solid bare copper conductors
ETL type CMR for indoor and riser network installations
Exceeds TIA/EIA-568-C.2 specifications

Application:


1.High-Performance Data Communications Cable
2.Suitable for 550MHz High-Speed Data Applications
3.Designed for Indoor Installations.
4.Flame Retardant Jacket
5.4-Pair Easily Identified Color-Striped Pairs
6.Excellent Attenuation and Crosstalk Characteristics
7.Exceeds EIA/TIA 568 C.2, CSA and ISO/IEC 11801 specifications
8.ETL Listed, RoHS Compliant

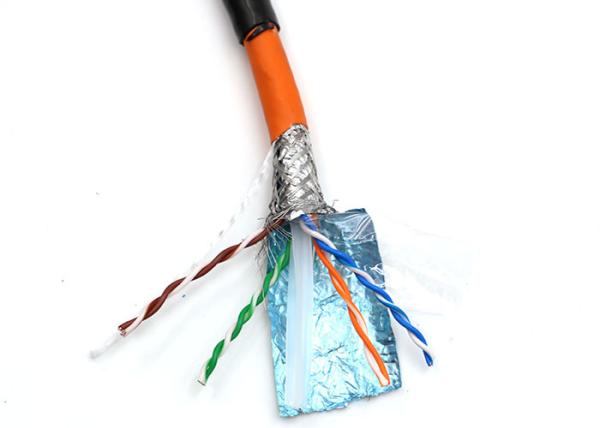

Network Electronic Cable Sftp Cat 6 23 Awg 0.58mm Solid Copper 1000ft / RollNetwork Electronic Cable Sftp Cat 6 23 Awg 0.58mm Solid Copper 1000ft / Roll
