External Grade Ethernet Cable Outdoor Cat6 Cable with Braid Shield

Product Categories

SHENZHEN XINTAIYUE COMMUNICATION CABLE CO.,LTD.

Contact Now

External Grade Ethernet Cable Outdoor Cat6 Cable with Braid Shield

Name: External Grade Ethernet Cable Outdoor Cat6 Cable with Braid Shield
Brand: WONTERM
Price: 1 USD

Brand Name : WONTERM

Model Number : WT6803-or

Certification : CE/FCC/UL/ROHS

Place of Origin : China

MOQ : 30pcs

Price : negotiation

Payment Terms : T/T or western Union

Supply Ability : 2500pcs per month

Delivery Time : 10 working days after received your payment

Packaging Details : First packed in box and then put two boxes in one Carton.

OEM : Welcome

Jacket : PVC(LSZH)+PE

Packaging : 2 boxes/carton

Nominal Outer Diameter : 6.0mm

Inner Jacket : PVC /5.2±0.2mm

Length per Box : 305M (500M/1000M...)

TYPE : SFTP CAT6 OUTDOOR CABLE

Contact Now

External Grade Ethernet Cable Outdoor Cat6 Cable with Braid Shield

Specifications:

Mode	sftp cat6 outdoor lan cable
Conductor Size	28AWG,26AWG,24AWG,23AWG,22AWG
Conductor Material	BC/CCA/CCS/CCAM/CCAG or customized
No.of Conductor	4P
Insulation Material	PE & HDPE
Jacket	PVC, ROHS PVC, LSZH PVC
Indoor/Outdoor	Double Jacket
Insulation Thickness	0.2mm
Jacket Thickness	0.92-0.95mm
Stretching Resistance	(max)250N
Impedance	100±15%Ω at 1~100MHz
DC Resistance Imbalance	2.50%
Insulation Resistance	10000MΩ.km
Transmission Velocity	72%
Operating Temperature	-40 °C - +70 °C

Feartures

1. Fast and reliable connection
2.Twisted pairs with bright color for easy recognition
3. Ripcord and foot-mark for convenient use
4. Smooth jacket for easy pulling in tight space
5. Colors: Light gray, blue, white or as per customer's requirements

6. Passing Fluke test is optional

7. OEM and ODM

8. Junction Network Cable sample available

Applications:

External Grade Ethernet Cable Outdoor Cat6 Cable with Braid Shield

Trade term:

Payment	T/T,L/C,D/P,D/A,Paypal,Western Union,MoneyGram,based on your quantity
Delivery time	Within 7 days,finally based on your quantity
Sample	Sample is free,we cooperate with DHL,TNT,UPS,FEDEX,EMS,China Air Post, ect
Port	Guangzhou/Shenzhen
MOQ	1 roll
Discount	We can offer when your order is over 100 boxes

Product Tags:

outdoor ethernet cable cat6

outdoor cat6 cable shielded

Wholesale External Grade Ethernet Cable Outdoor Cat6 Cable with Braid Shield from china suppliers

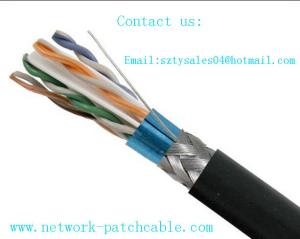

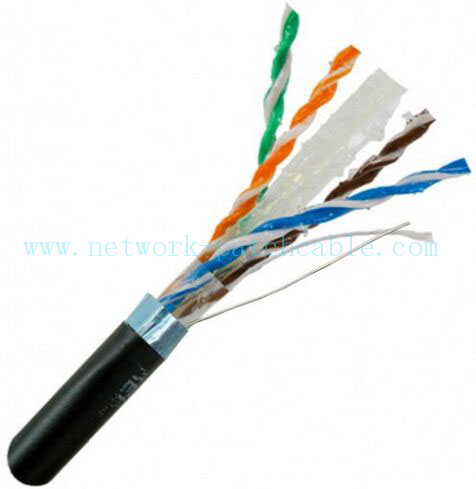

External Grade Ethernet Cable Outdoor Cat6 Cable with Braid Shield Images
